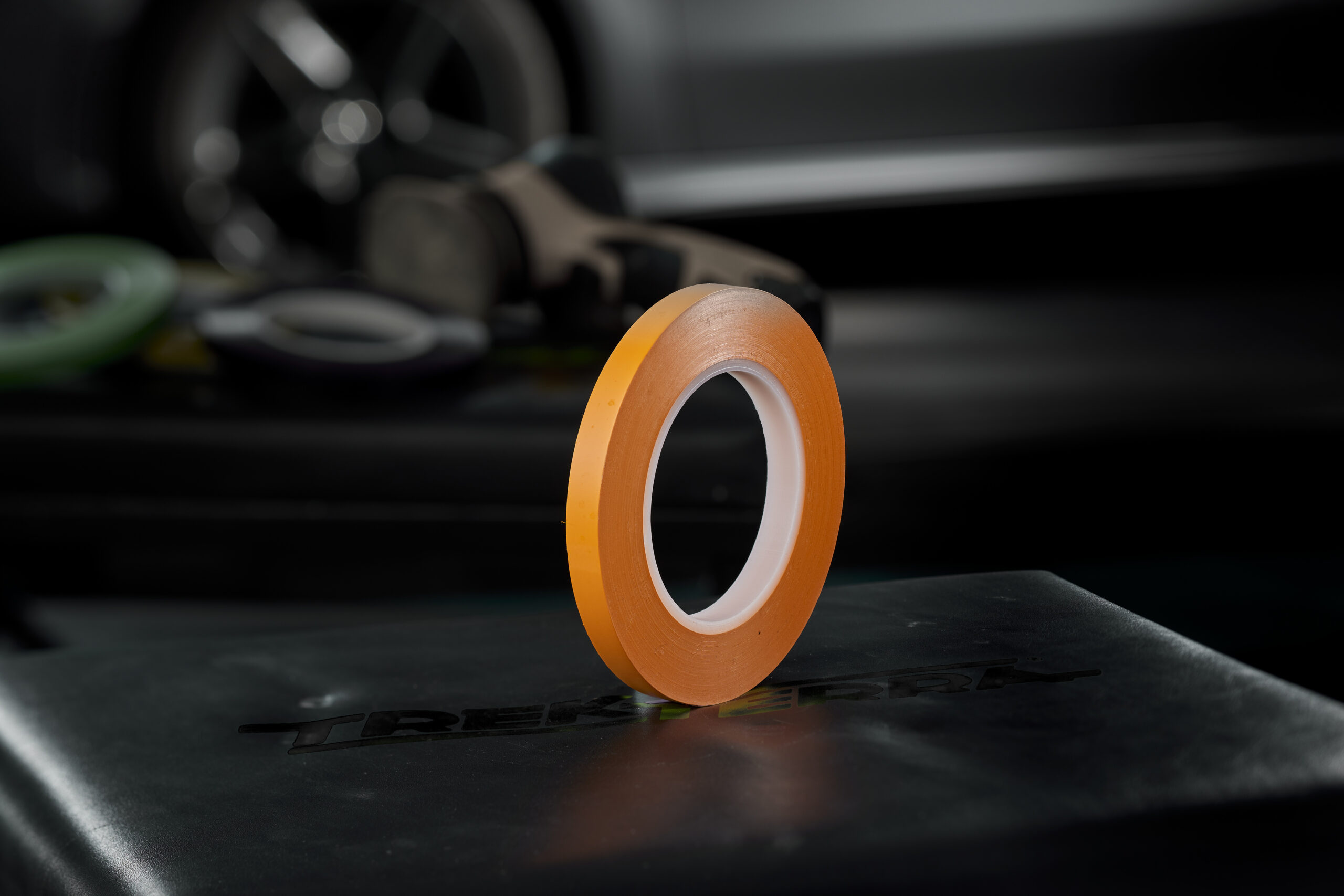

• A roll of orange tape stands upright on a dark surface, with blurred vehicle parts in the background.

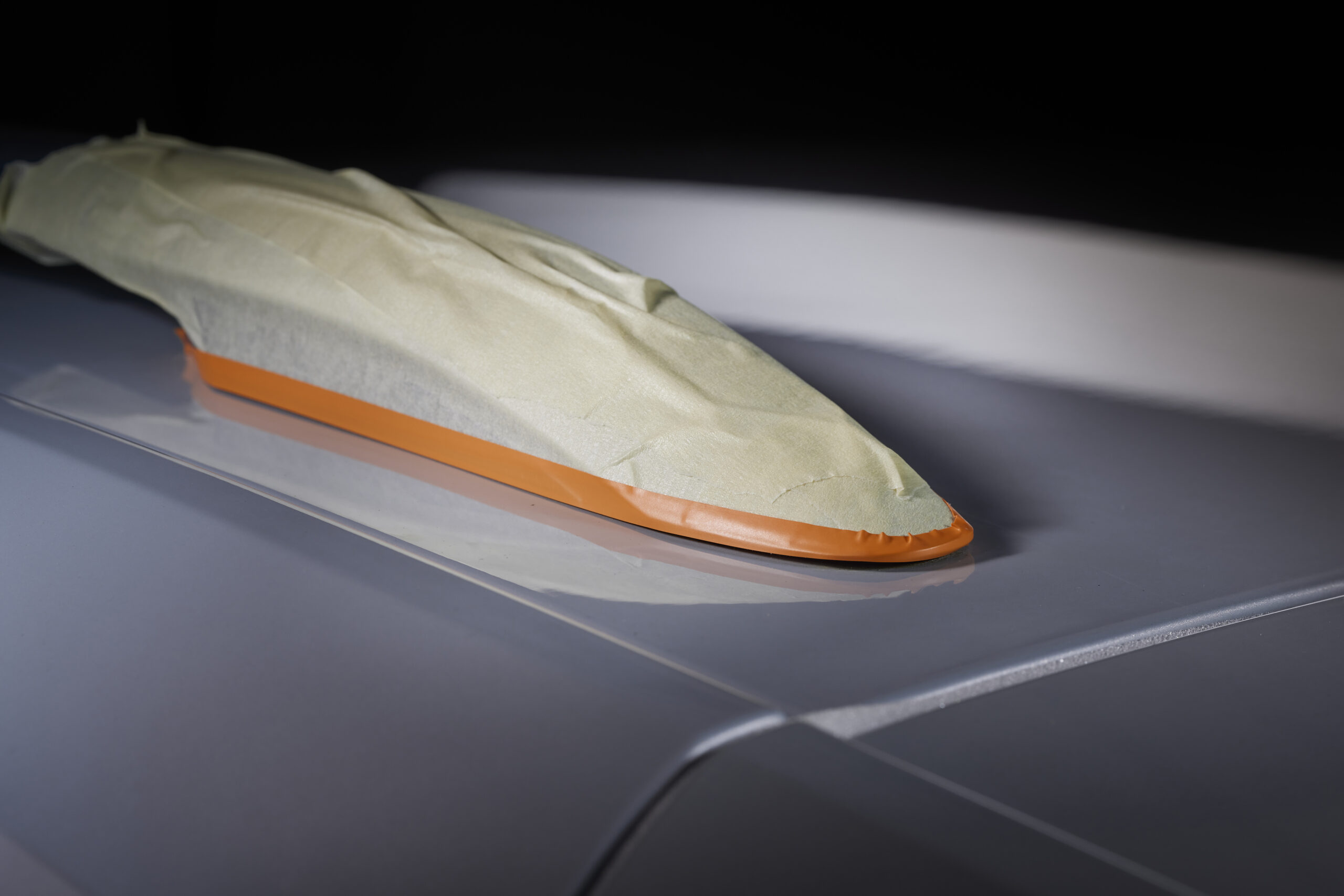

  • 1111 i2 scaled

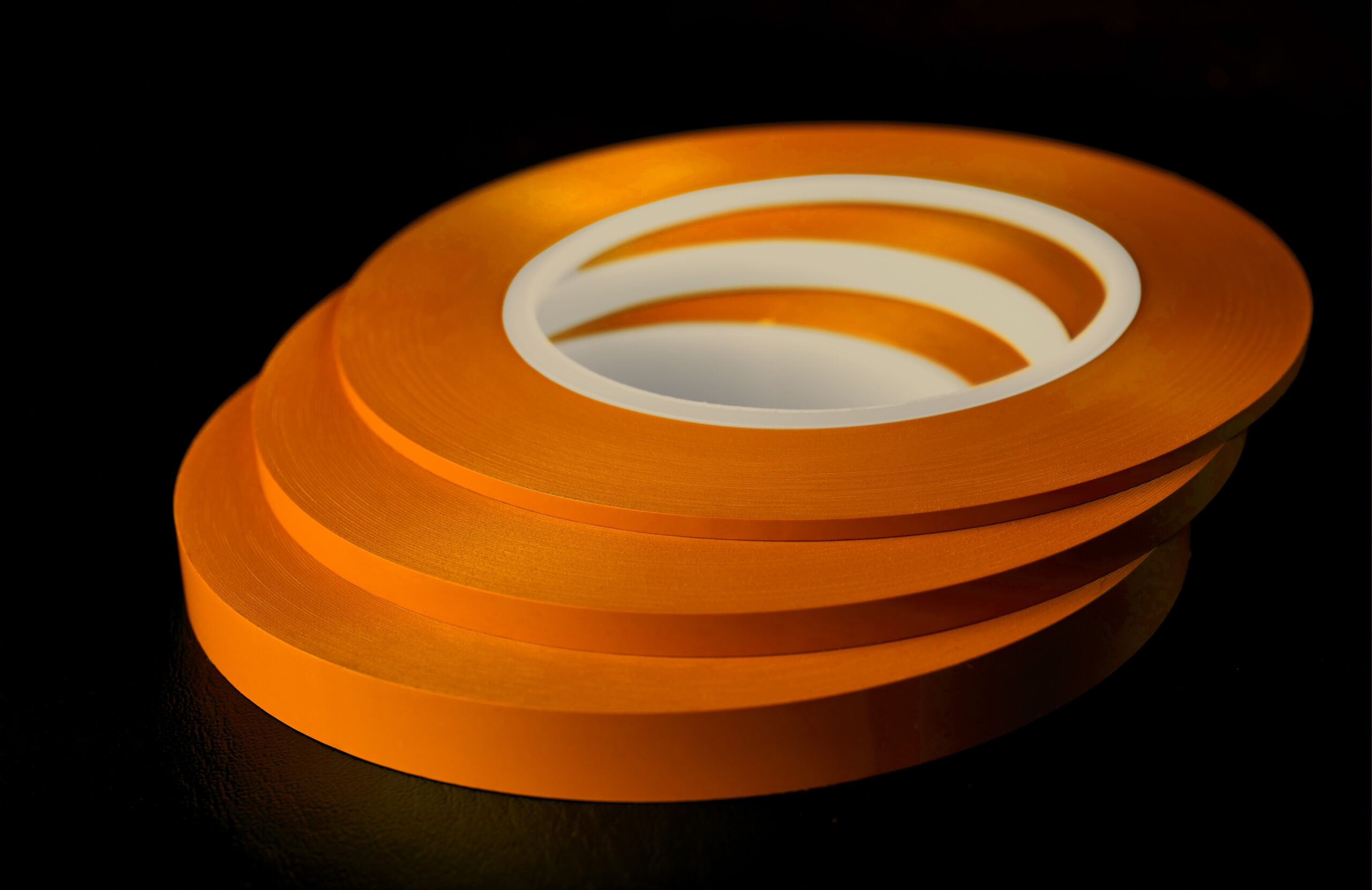

  • 1111 i3 scaled
A roll of orange tape stands upright on a dark surface, with blurred vehicle parts in the background. 1111 i2 scaled 1111 i3 scaled

Orange Fine Line Masking Tape

Part No. 1111
JTAPE Orange Fine Line Masking Tape is thinner and more translucent than other Fine Line Tapes to provide greater visibility through to the painted surface.
Clear
Find a distributor

Description

JTAPE Orange Fine Line Masking Tape is ideal for straight lines whilst also being highly flexible.

Featuring a thermally stabilised PVC backing with a rubber-based, pressure-sensitive adhesive, it’s highly flexible so it’s easy to curve on flat surfaces and shapes with tight contours.

After automotive paint application, it can be cleanly removed, leaving a defined line with no adhesive residue. It offers excellent durability and is temperature resistant up to 302°F/150°C for 1 hour.

Our Orange Fine Line Masking Tape is supplied in 55m length, with a choice of widths ranging between 1/16″and 1/2″. Other sizes available upon request.

KEY FEATURES

  • Ideal for straight lines whilst also remaining flexible for easy curving
  • Can be applied over newly-painted surfaces due to its rubber-based, pressure-sensitive adhesive
  • Temperature resistant up to 302°F/150°C for use in high bake ovens
  • Safe to use with water, solvent and enamel-based paints to suit a variety of applications
  • Prevents bleeding, creeping and spidering for a sharp, defined paint line every time
  • Suitable for all types of automotive, marine, aerospace decorative and industrial paint systems
  • Can be cleanly removed, leaving no adhesive residue.

BEST FOR

  • Contrast colors/color separation
  • Plastic parts
  • Painted and non-painted surfaces
  • Striping
  • Customizing

SIZES

  • 1/16″ x 180′
  • 1/8″ x 180′
  • 1/4″ x 180′
  • 1/2″ x 180′

TECHNICAL SPECIFICATIONS

Carrier

PVC

Adhesive

Rubber

Color

Orange

Thickness

130µm / 0.130mm (±10%)

Peel Adhesion

6.5N/25mm (±10%) [ASTM-D1000]

Elongation at Break

>140%

Tensile Strength

>20N/cm

Temperature Resistance

Up to 150⁰C (302⁰F) for 1 hour

DOWNLOADS

Product Information Sheet

Download

Technical Data Sheet

Download

Process Board

Download
