No Edge Blending Tape

Part No. 1012.2005
Non-stretch, No Edge Blending Tape is the smart solution for masking swage lines and panel edges to create a seamless finish from new paintwork to old.
Enquire Now Find a Jobber

Description

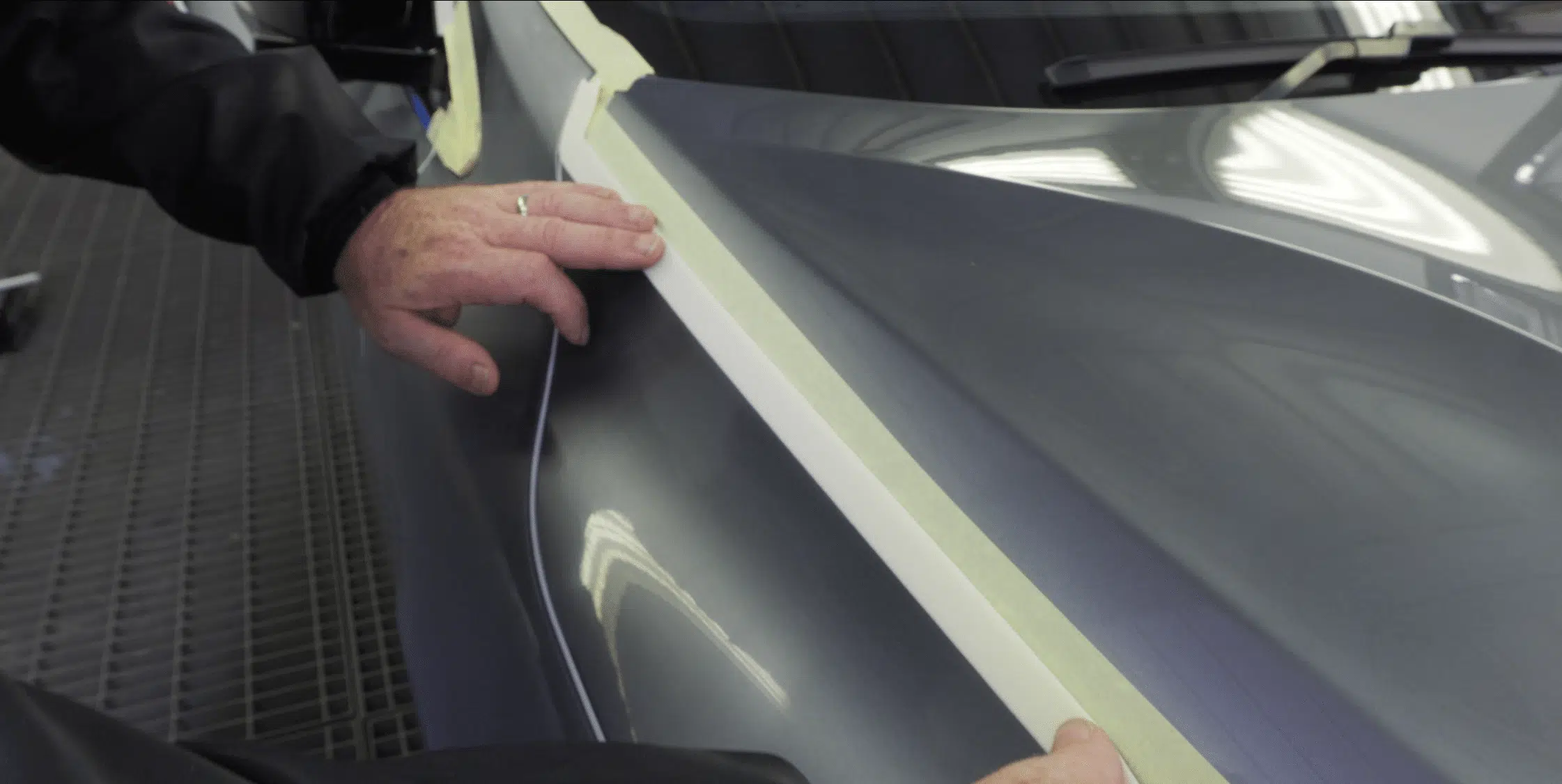

JTAPE No Edge Blending Tape can be applied quickly and accurately for straight edges, giving a feathered finish without the need for reworking; removing the foam tape while the clear coat is still wet gives the perfect finish.

Temperature resistance to 120°C (248°F) makes it the ideal solution for high temperature bake cycles and SMART repairs with infrared lamps.

JTAPE No Edge Blending Tape saves time and materials to give a perfect finish when blending clearcoat to swage lines and panel edges. Areas of application include swage/style lines, B & C posts, bonnets and boots

KEY FEATURES

  • Seamless blending from old to new paintwork, eliminating rework
  • Paint absorbent, leaving no hard paint edges
  • Feathered edge over longer lengths for a consistent finish
  • No need for folded tape, saving time and avoiding inconsistencies
  • Temperature resistant to 120°C (248°F), suitable for low or high bake ovens and infra-red drying systems
  • Non-stretch properties ensure no unwanted elongation

BEST FOR

  • Swage/style lines
  • B & C posts
  • Hood
  • Trunk

SIZE

  • 3/4″ x 81′

TECHNICAL SPECIFICATIONS

Weight 0.064 kg
Material

Foam / crepe paper
Adhesive

Rubber
Color

White
Thickness

3mm (±15%)
Peel Adhesion

3N (≈9N/25mm) [ASTM D3330-F]
Elongation at Break

8%
Tensile Strength

≥34N
Temperature Resistance

≤120°C (248°F) for ≤1 hour

CREATES A FEATHERED EDGE

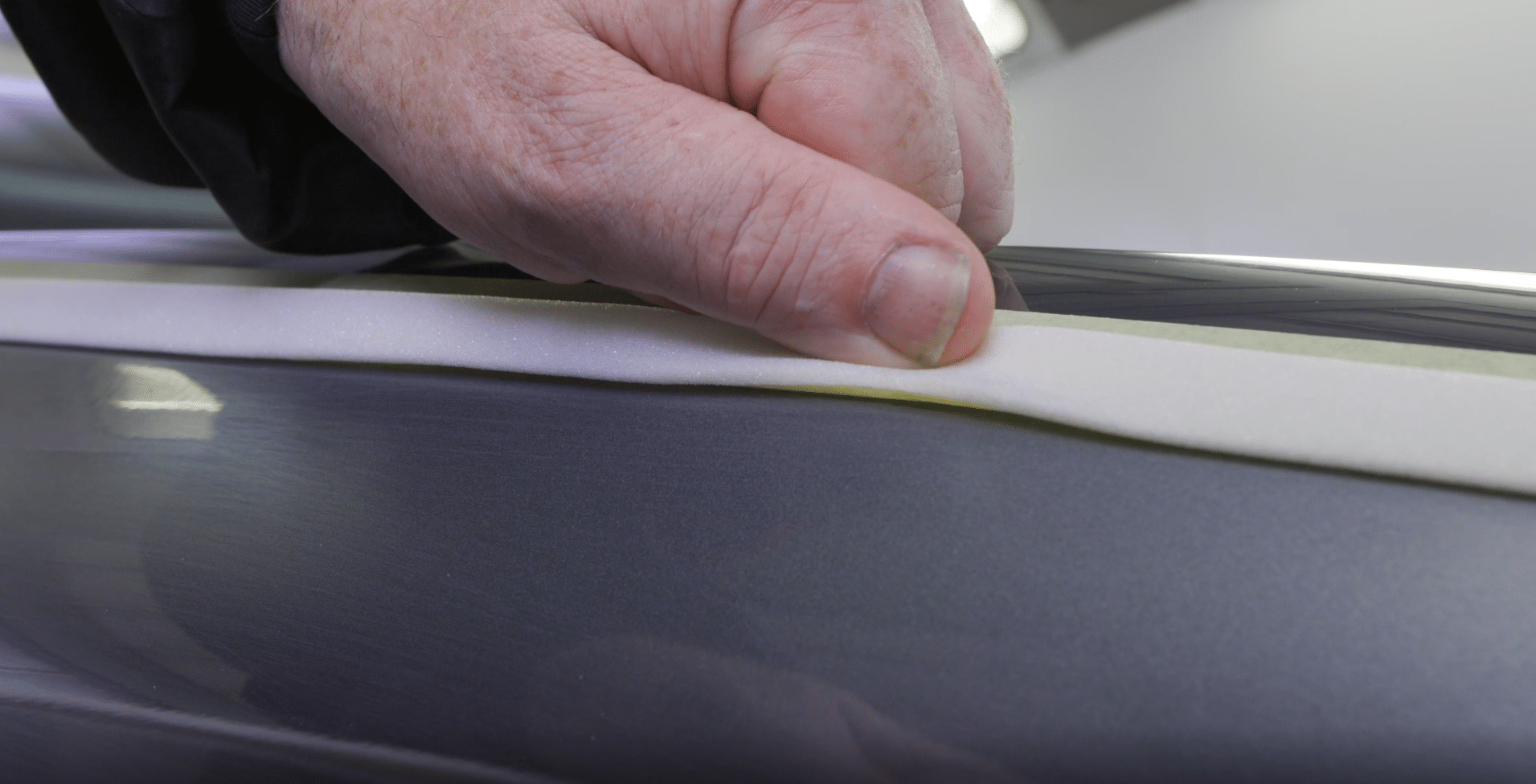

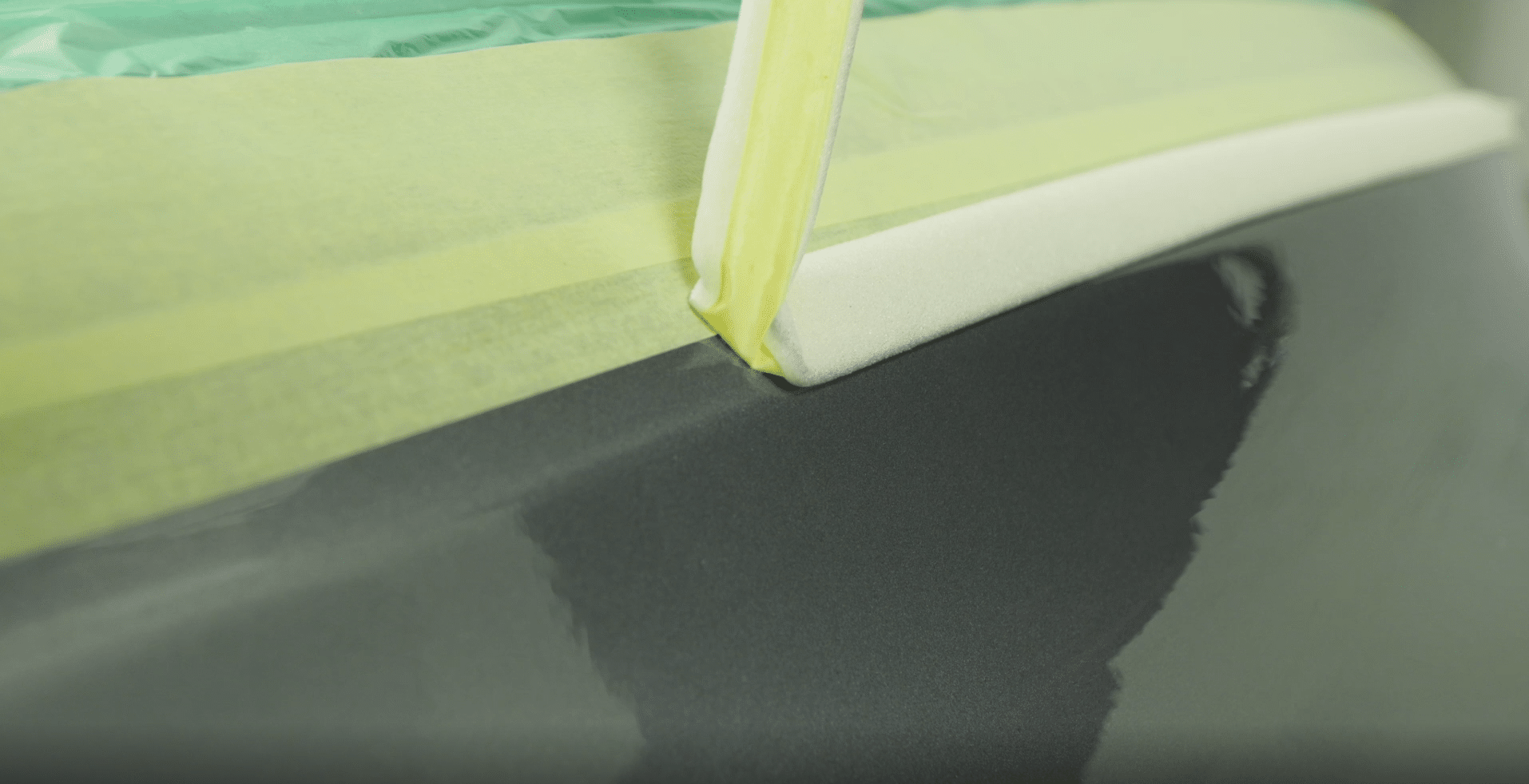

The adhesive backing is located centrally, leaving an adhesive-free section on either side. This creates a soft, feathered finish that enables a seamless blend between old paintwork and new.

NON-STRETCH PROPERTIES

JTAPE No Edge Blending Tape is designed to create the perfect finish, ensuring no unwanted tape elongation. This prevents issues such as inconsistent lines, paint bleed, loss of adhesion, loss of adhesion and tearing or breakage during removal.

DOWNLOADS

Process Board

Download

Product Information Sheet

Download

Technical Data Sheet

Download
