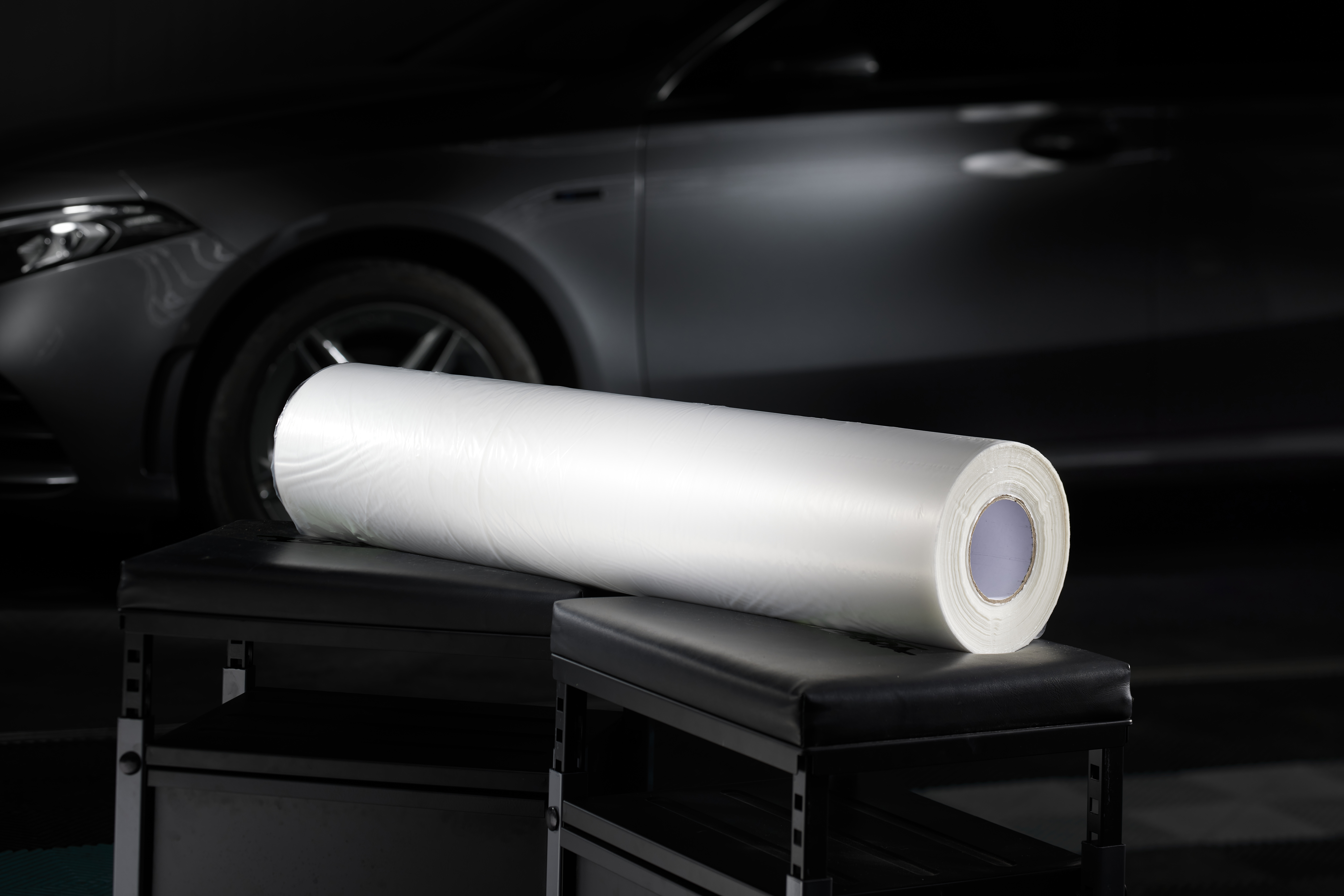

180°C High Temperature Masking Film

Part No. 1075
JTAPE 180°C High Temperature Masking Film is ideal for automotive OEM applications involving two-tone painting thanks to its anti-sweat, anti-static properties and high heat resistance of up to 180°C.

This product is currently out of stock and unavailable.

Description

High temperatures used in automotive painting require specialist materials, which is why JTAPE designed 180°C High Temperature Masking Film to excel in those temperatures without compromising the effectiveness and performance of the film.

The film is easy to cut, apply, and remove thanks to its double-sided adhesion and bespoke sizes and formats that are available to match the intricate curves of any vehicle.

180°C High Temperature Masking Film is available in either pre-taped crepe or fine-line options giving the ultimate versatility when guarding the paintwork of your client’s car.

Thanks to its anti-static nature, you needn’t worry about the safety of the film or your workspace, allowing you to focus on the job at hand.

Available in a choice of widths ranging from 200mm up to 1.8m, and lengths between 200m and 500m, JTAPE can also produce bespoke sizes and formats built to customer requests.

KEY FEATURES

  • Anti-static properties prevent paint contamination, reducing the risk of rework
  • Paint adhesion to both sides of the film, allowing it to be applied face-up or face-down for rapid deployment in fast-paced environments
  • Temperature resistant up to 180°C/356°F to withstand rigorous baking cycles
  • Anti-sweat surface to eliminate risk of ghost marks and moisture trails
  • Clean, accurate cutting to avoid tearing or stretching, reducing masking time
  • Confidence in applications around sharp edges
  • Custom sizes and formats also available, tailored to your process for reduced waste and optimised line-side stock

BEST FOR

  • Two-tone or contrast automotive OEM masking
  • Protecting surfaces from overspray
  • High temperature curing

SIZES

  • 1350mm x 200m
  • 1500mm x 200m
  • 1600mm x 240m
  • 1700mm x 240m
  • 1800mm x 240m
  • 200mm x 500m
  • 780mm x 500m
  • 1200 x 500m

TECHNICAL SPECIFICATIONS

Carrier

Treated Modified-Polyethylene film
Adhesive

N/A – Non-Adhesive Film
Colour

Clear (Translucent)
Antistatic

Yes – eliminates or reduces static charge build-up
Thickness

40µm / 0.040mm (±10%)
Temperature Resistance

Up to 180°C (355°F) for 30 minutes
Surface Resistance

6 (±1.5) x1010Ω
Static Charge Decay

+V 65s (±15) / -V 70s (±20)

FREQUENTLY ASKED QUESTIONS

How thick is JTAPE 180°C High Temperature Masking Film?

JTAPE 180°C High Temperature Masking Film is 40 microns thick.

Which way up do you apply JTAPE 180°C High Temperature Masking Film?

The film can be applied either way up due to excellent paint adhesion of both sides. This makes it a great choice for fast-paced environments where rapid deployment is crucial.

How does JTAPE 180°C High Temperature Masking Film meet OEM requirements of safety?

JTAPE’s High Temperature Masking Film meets OEM safety standards through its anti-static formulation, clean removability, and high-temperature resistance, minimising contamination risk and ensuring reliable performance in controlled manufacturing environments.
