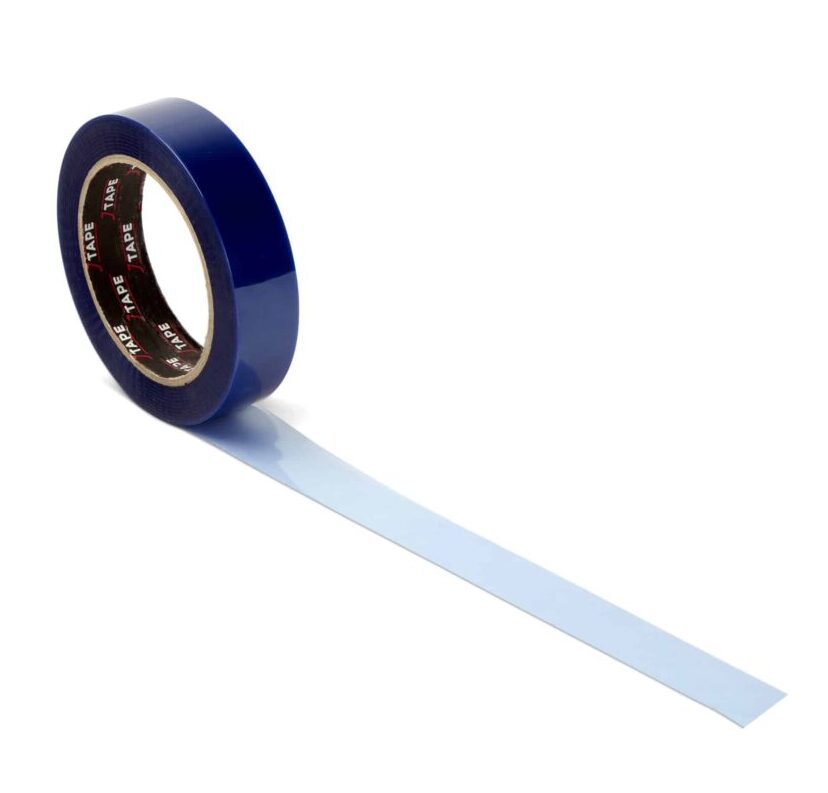

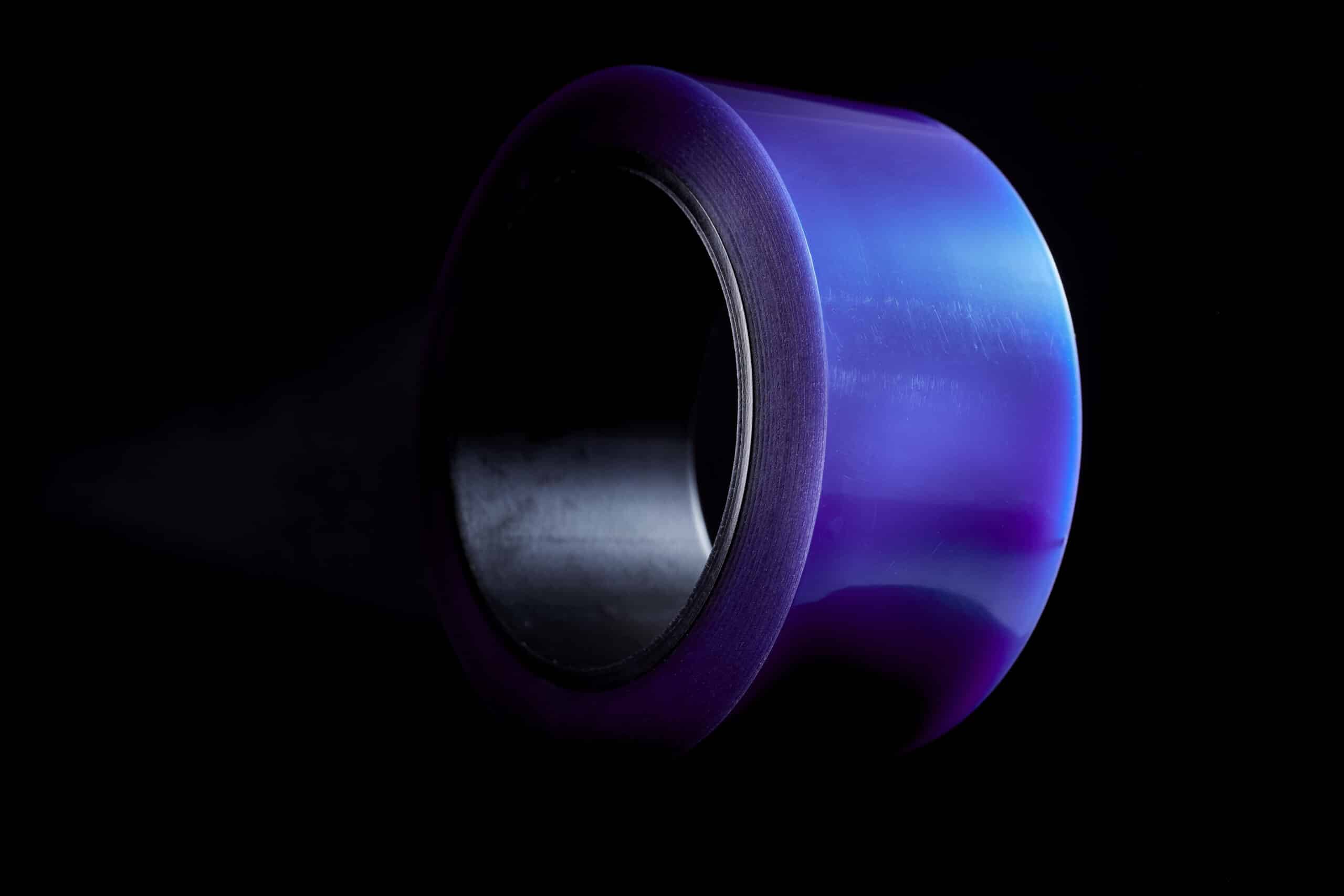

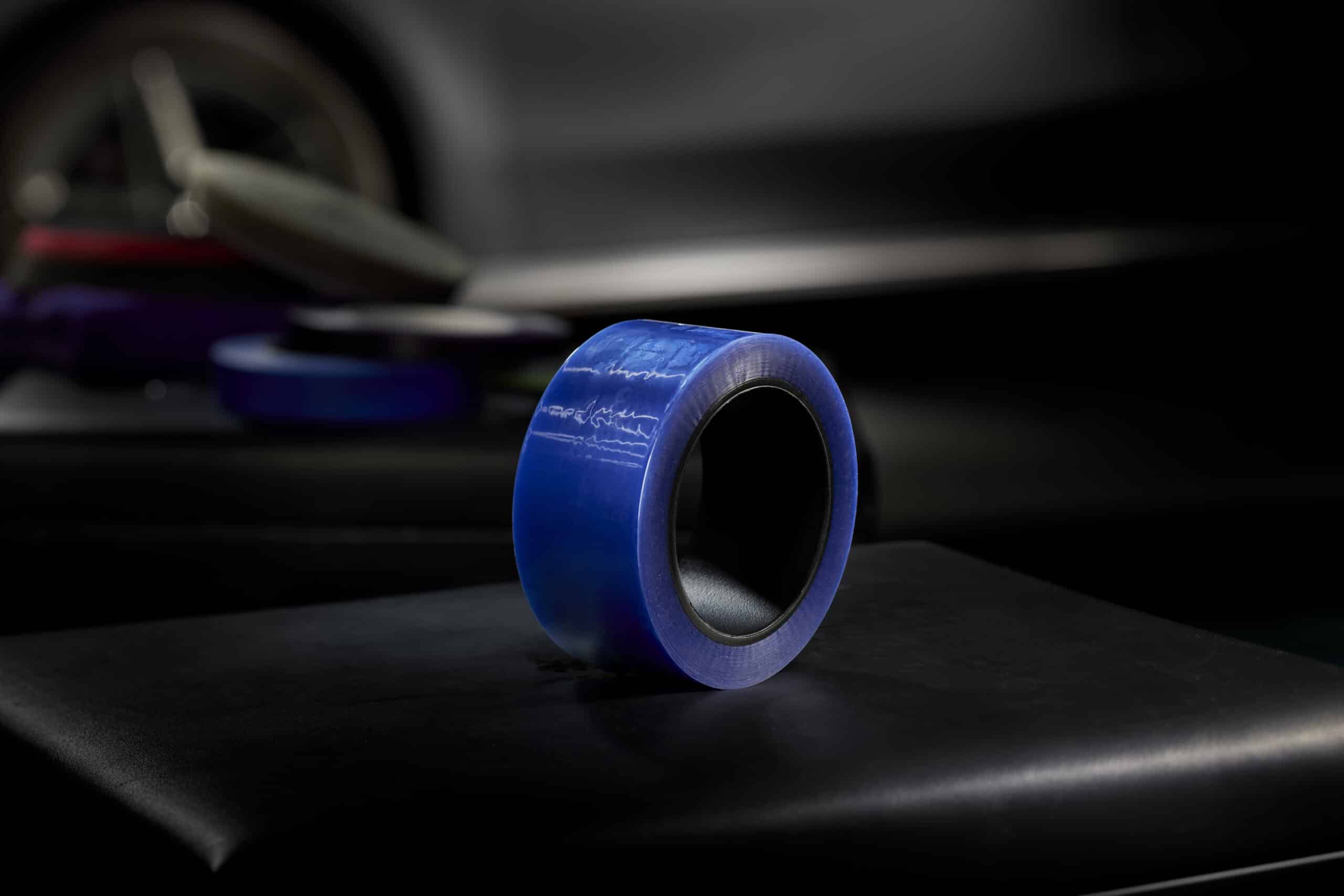

Blue High Temperature Polyester Film Tape
Description
JTAPE Blue High Temperature Polyester Film Tape is a reliable and versatile product that’s perfect for powder coating and painting in the automotive industry.
Offering the same strength and durability as our Green 4005 product, Blue High Temperature Polyester Film Tape provides a thinner, more flexible alternative that’s ideal for masking corners and curved or uneven surfaces.
It also features excellent temperature resistance up to 220°C/428°F, so it’s perfect for masking and protecting various surfaces during the coating, painting and baking process.
This silicone-based and polyester film-backed tape is available in various widths ranging from 3mm up to 100mm and comes in a cost-effective 66m length roll. Other sizes are available upon request.
KEY FEATURES
- A thinner, more flexible design, ideal for curved or uneven surfaces without compromising on strength or durability
- Silicone-based adhesive suitable for automotive powder coating and painting
- Excellent temperature resistance up to 220⁰C/428⁰F ideal for use during the coating painting and baking process
BEST FOR
- Powder coating
- Surface protection
- Baking
- Coating
SIZES
- 3mm x 66m
- 6mm x 66m
- 9mm x 66m
- 12mm x 66m
- 19mm x 66m
- 25mm x 66m
- 50mm x 66m
- 75mm x 66m
- 88mm x 66m
- 100mm x 66m
TECHNICAL SPECIFICATIONS
| Carrier | Polyester film |
|---|---|
| Adhesive | Silicone-based |
| Colour | Translucent blue |
| Thickness | 65µm/0.065mm (±5%) |
| Release liner | Release-coated PET film liner |
| Peel Adhesion | >3N/cm |
| Temperature Resistance | Up to 220⁰C (428⁰F) ≥30 minutes |
DOWNLOADS
FREQUENTLY ASKED QUESTIONS
Is Blue Polyester Film Tape easy to remove?
This tape couldn’t be easier to remove – simply pull the edge away from the vehicle’s surface once the clear coat is dried for a quick, residue-free removal.
What is the temperature resistance of Blue Polyester Film Tape?
This high temperature film tape offers excellent temperature resistance up to 220°C/428°F for up to 30 minutes.
What is the difference between Blue Polyester Film Tape and Green Polyester Film Tape when it comes to powder coating?
Our blue film tape offers a thinner adhesive which makes it easier for masking off curved or uneven surfaces for powder coating. Meanwhile, green film tape has a thicker carrier which can help ensure overspray won’t be an issue.
Why is Blue Polyester Film Tape translucent?
JTAPE Blue Polyester Film Tape features a translucent backing so that you can see the surface under the tape during the coating, painting and baking processes.
