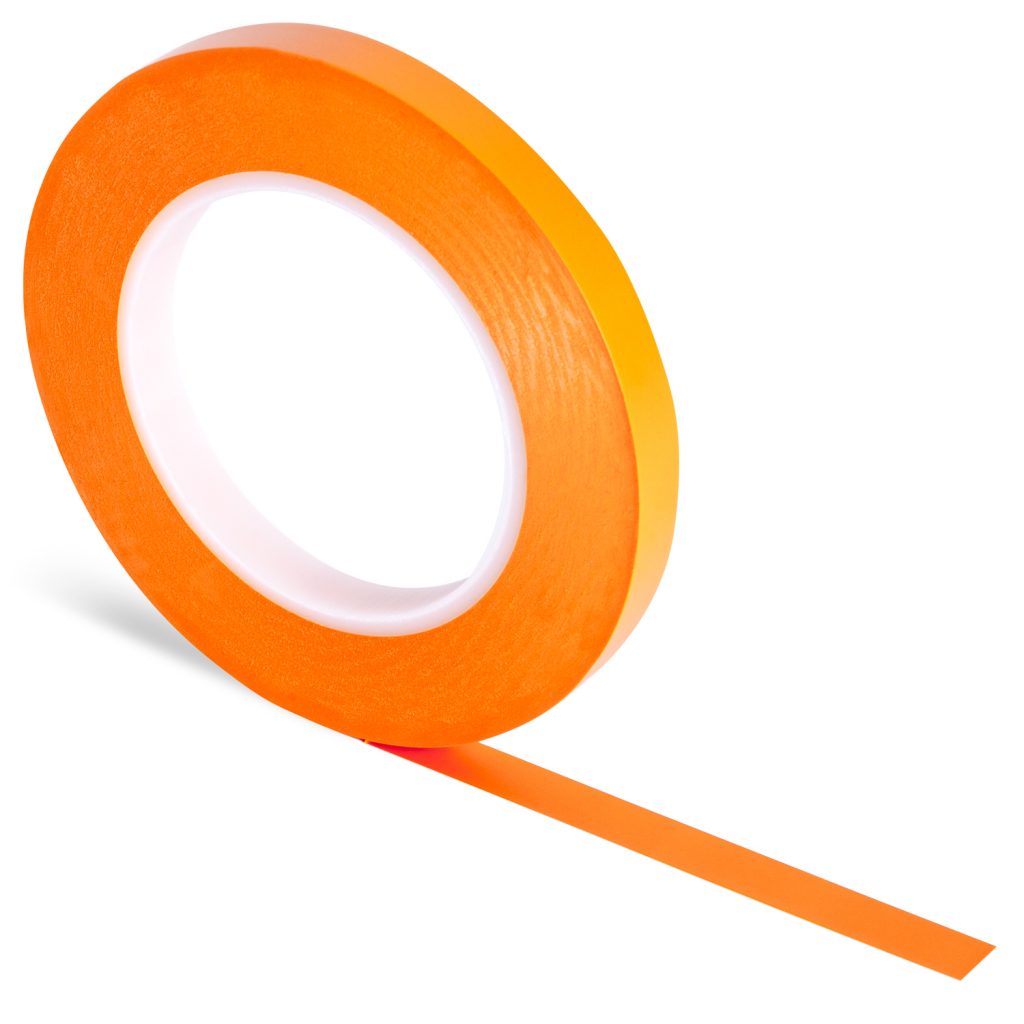

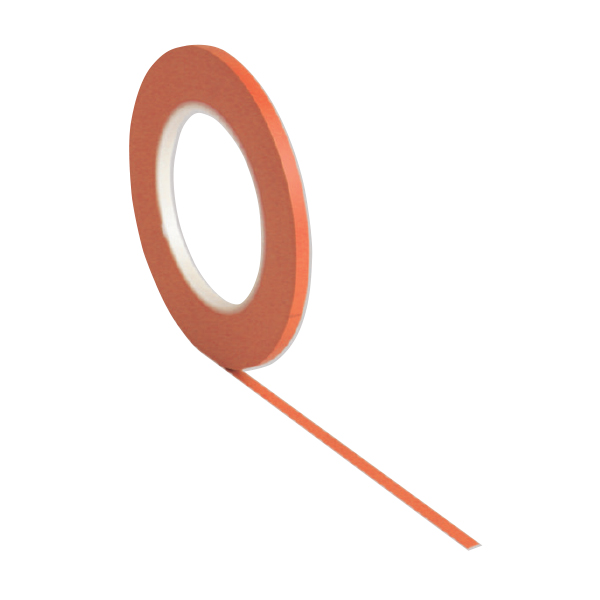

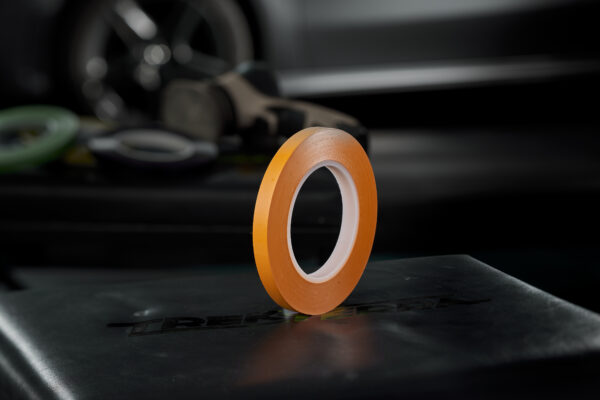

Orange Fine Line Masking Tape
Description
JTAPE Orange Fine Line Masking Tape is ideal for straight lines whilst also being highly flexible.
Featuring a thermally stabilised PVC backing with a rubber-based, pressure-sensitive adhesive, it’s highly flexible so it’s easy to curve on flat surfaces and shapes with tight contours.
After automotive paint application, it can be cleanly removed, leaving a defined line with no adhesive residue. It offers excellent durability and is temperature resistant up to 150°C/302°F for 1 hour.
Our Orange Fine Line Masking Tape is supplied in 55m length, with a choice of widths ranging between 1mm – 25mm. Other sizes available upon request.
KEY FEATURES
- Ideal for straight lines whilst also remaining flexible for easy curving
- Can be applied over newly-painted surfaces due to its rubber-based, pressure-sensitive adhesive
- Temperature resistant up to 150°C/302°F for use in high bake ovens
- Safe to use with water, solvent and enamel-based paints to suit a variety of applications
- Prevents bleeding, creeping and spidering for a sharp, defined paint line every time
- Suitable for all types of automotive, marine, aerospace decorative and industrial paint systems
- Can be cleanly removed, leaving no adhesive residue.
BEST FOR
- Contrast colours/colour separation
- Plastic parts
- Painted and non-painted surfaces
- Striping
- Customising
SIZES
- 1mm x 55m
- 1.5mm x 55m
- 2mm x 55m
- 3mm x 55m
- 6mm x 55m
- 9mm x 55m
- 12mm x 55m
- 15mm x 55m
- 19mm x 55m
- 25mm x 55m
TECHNICAL SPECIFICATIONS
| Carrier | PVC |
|---|---|
| Adhesive | Rubber |
| Colour | Orange |
| Thickness | 130µm / 0.130mm (±10%) |
| Peel Adhesion | 6.5N/25mm (±10%) [ASTM-D1000] |
| Elongation at Break | >140% |
| Tensile Strength | >20N/cm |
| Temperature Resistance | Up to 150⁰C (302⁰F) for 1 hour |
DOWNLOADS
FREQUENTLY ASKED QUESTIONS
Can you use Orange Fine Line Tape for pinstriping?
Thanks to the various widths, including custom widths, Orange Fine Line Tape is perfect for pinstriping and creating totally unique automotive paint jobs.
Does Orange Fine Line Tape leave adhesive residue?
Orange Fine Line Tape can be removed without leaving any adhesive residue. After baking and allowing the clear coat to dry fully, all you need to do is simply peel it away from the surface.
What is the temperature resistance of Orange Fine Line Tape?
JTAPE Orange Fine Line Tape offers temperature resistance up to 150°C/302°F for up to an hour.
What surfaces can Orange Fine Line Tape be used on?
It can be used on a wide variety of surfaces, including plastics and metals, so it’s well suited across industries such as aerospace, manufacturing and decorating, in addition to the automotive industry.
