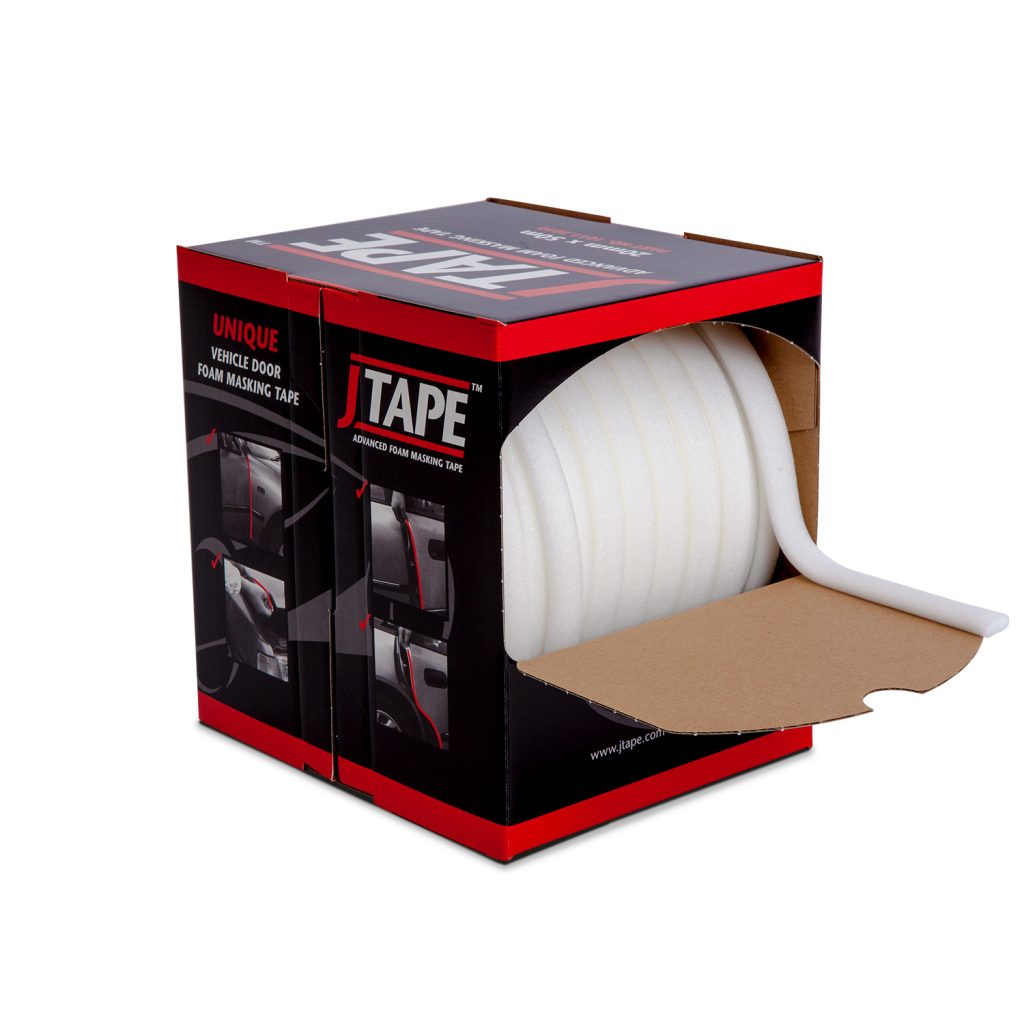

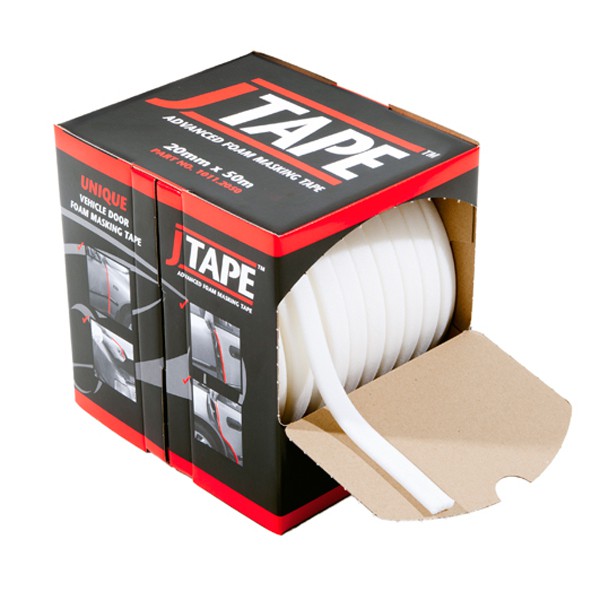

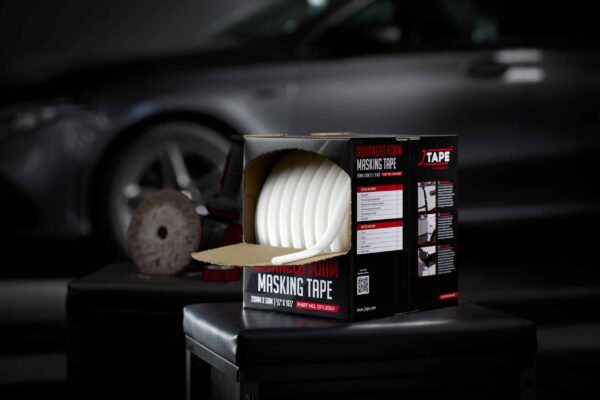

Advanced Foam Masking Tape

PART NO: 1011.2050

Advanced Foam Masking Tape is an excellent alternative to standard, round, smooth-edge foam masking tapes. The foam tape is designed to mask all apertures of the vehicle and prevents overspray, saving valuable time during the automotive painting process and leaving you with a high quality finish with every application.

Our Advanced Foam Masking Tape is designed to make the automotive painting process easier and more efficient around tricker apertures such as bonnets, doors and boots. Thanks to the innovative offset adhesive, it can be applied and adjusted with ease whether you’re masking off moving or fixed parts. The unique design helps prevent base and clear coat build up on the foam, ensuring a clean and professional finish with no build-up of hard edges.

 Our Advanced Foam Masking Tape is an excellent choice of automotive tape for many repair shop masking needs, from SMART repairs to blending paint jobs.

Best for:

  • A, B & C Posts
  • Bonnet / Hood
  • Boot / Trunk

Sizes available:

  • 20mm (width) x 50m (length)
Features Benefits
One continuous length No waste unlike competitive products that can accidentally remove multiple lengths
For use in all apertures, specifically designed for A, B and C posts Suitable for all panel gaps
Adjustable between coats Helps create a softer edge
Temperature resistant to 90°C/194°F Suitable for low bake ovens
Offset adhesive Prevents hard paint edges
Retains its shape to re-join Perfect product positioning every time
Can be used on the moving part Allows product to be adjusted between coats

How to Use

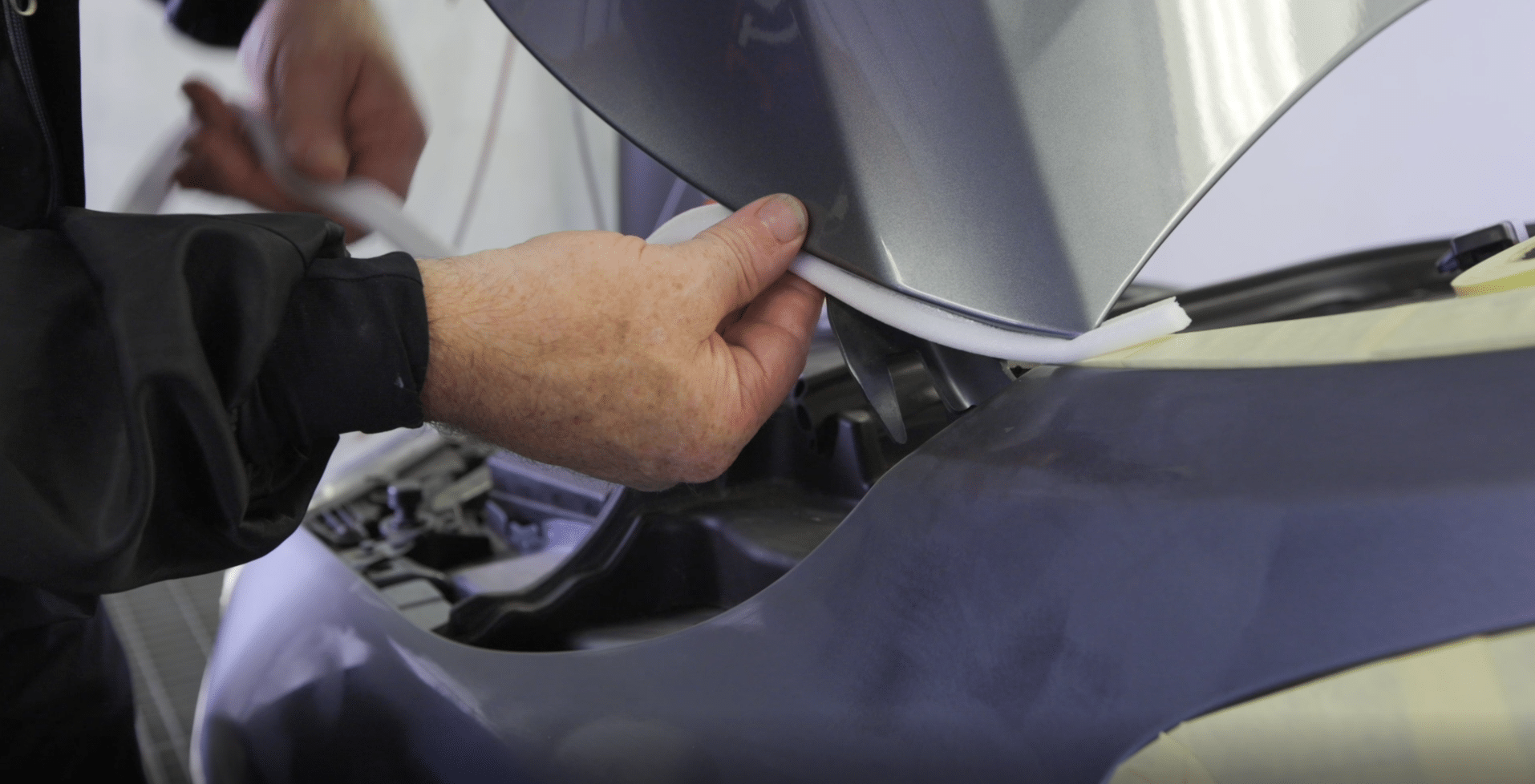

For moving parts:

Step 1: Apply the offset adhesive to the moving part, making sure not to stretch the tape during application. Leave the non-adhesive section extended and apply pressure to secure the foam tape in place.

Step 2: Close the moving part and adjust the tape back into the gap with your fingertips.

Step 3: After applying the base coat, adjust the foam tape back again to prevent clear coat and base coat build up on the foam.

Step 4: Once the clear coat application is finished and the bake cycle is done, stretch the tape to release the adhesive and remove it from the vehicle.

For fixed parts:

Step 1: Apply Advanced Foam Masking Tape to the back edge of the fixed part while the adjacent aperture is open, leaving the non-adhesive section extended. Press the tape down with your fingertips to secure it in place.

Step 2: Close the adjacent aperture and adjust the foam tape into the gap using your fingertips.

Step 3: Once the base coat is applied, adjust the tape back again to guarantee a perfect clear coat application.

Step 4: After the clear coat application and baking, remove the Advanced Foam Masking Tape by stretching to release the adhesive.

Using Advanced Foam Masking Tape

How to Mask Car Pillar Posts

In this guide, we explain the three different types of car pillar posts and how to use our Advanced Foam Masking Tape to mask these off efficiently.

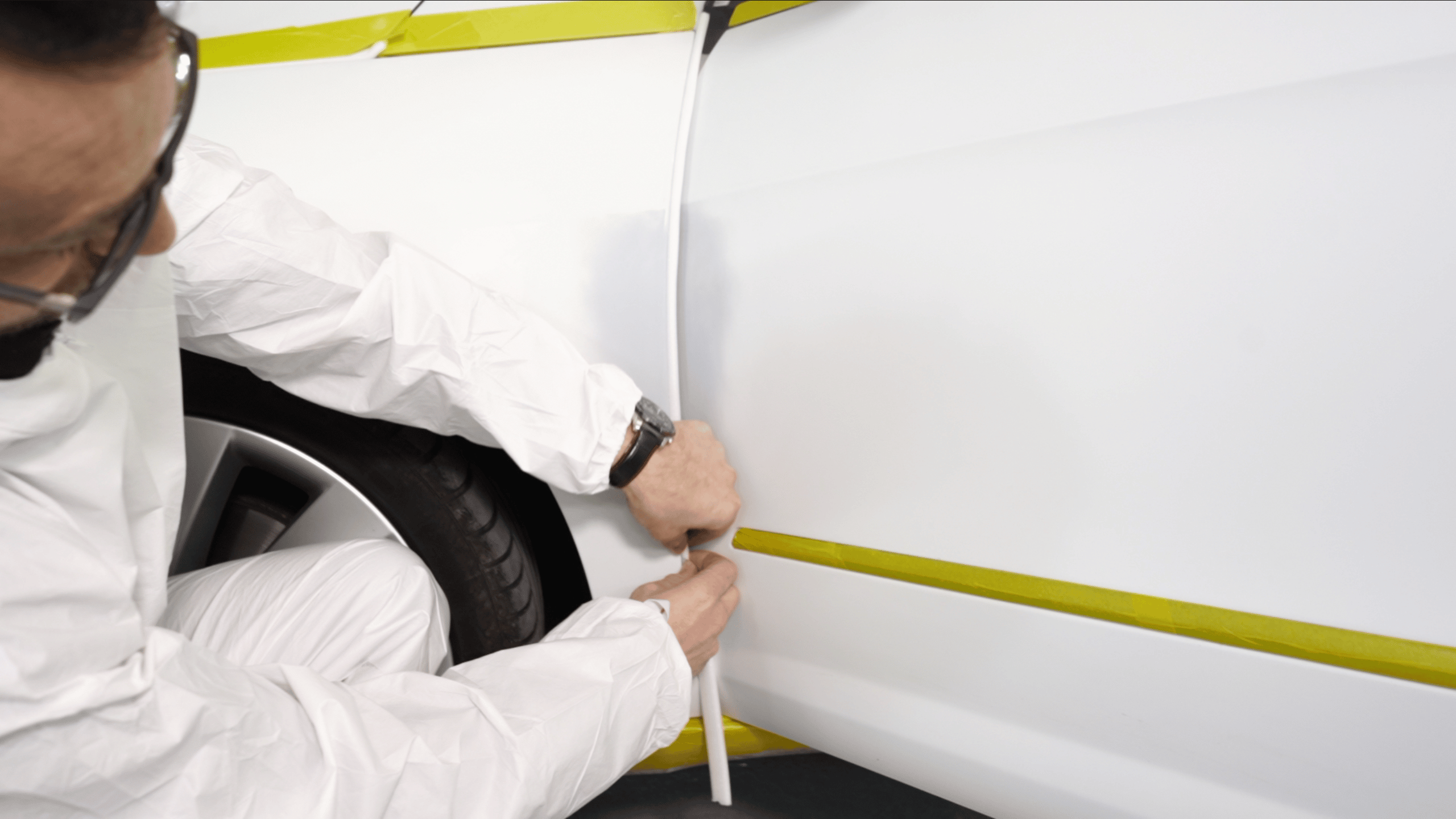

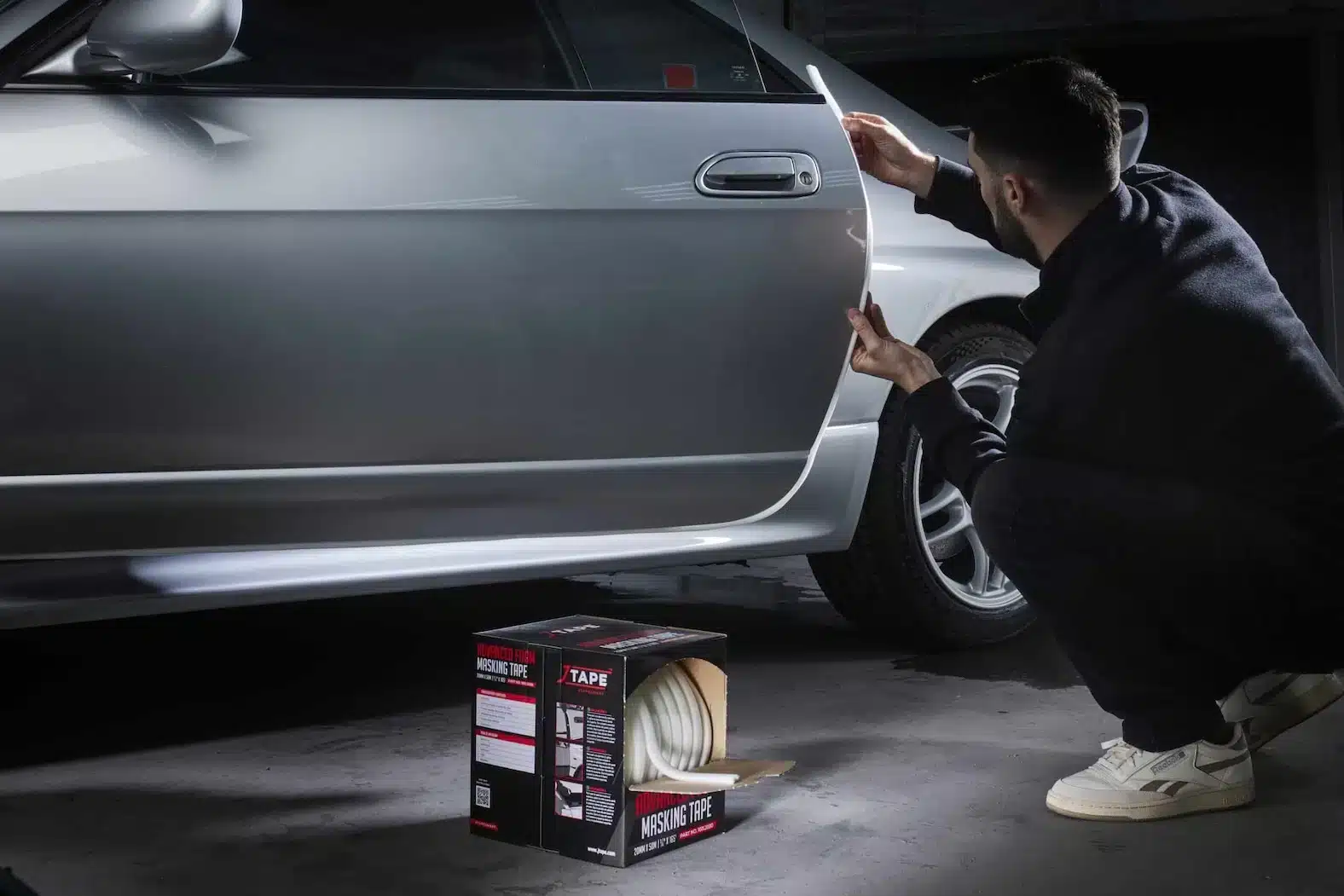

How to Mask a Car Door for Painting

Here, we explain the best techniques for masking off a car door for painting, including using our Advanced Foam Masking Tape to create a feathered finish without harsh paint edges.

Frequently Asked Questions

Thanks to the offset adhesive of this foam tape, paint build-up can be prevented. This means you can avoid a hard paint edge, and achieve a high quality finish with each paint job instead.

Our Advanced Foam Masking Tape is perfect for use on moving parts such as bonnets, doors and boots. The offset adhesive makes it easy to apply and adjust even in tight spaces, allowing you to achieve a soft-edge finish on many of a vehicle’s moving parts during the automotive painting process.

Our Advanced Foam Masking Tape has a maximum shelf life of one year from the date of receipt and must be stored at 22°C (72°F) and 50% relative humidity.

This adhesive foam tape offers excellent temperature resistance up to 95°C for 1 hour, making it ideal for use in low-bake ovens.

DOWNLOADS
FIND A DISTRIBUTOR
BUY DIRECT

Complete the contact form to find out who your local distributor is or alternatively select buy direct to purchase our products.

Choose your preferred currency, £, € or $ once you have added the product to your basket.

Advanced Foam Masking Tape

£36.99

Advanced Foam Masking Tape is designed to mask all apertures, including the difficult to mask A Post, to prevent overspray, providing a high quality finish while saving time and money.

SKU: 1011.205 Category: Tag:
Product Size: 20mm x 50m

Advanced Foam Masking Tape

Advanced Foam Masking Tape is designed to mask all apertures, including the difficult to mask A Post, to prevent overspray, providing a high quality finish while saving time and money.
